Victory Jackpot, 2009

Victory Jackpot, 2009



USA Specifications
MSRP $18,499.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters
Displacement 106 ci (1,731 cc)
Bore x Stroke 101 x 108 mm
Compression Ratio 9.4:1
Electronic Fuel Injection with dual 45 mm throttle bodies
Clutch Wet, multi-plate
Cooling Air / oil
Exhaust Staggered slash-cut dual exhaust with crossover

DIMENSIONS
Length 95.9 in. (2,435 mm)
Weight Dry: 649 lbs. (294 kg)
GVWR: 1,171 lbs. (531 kg)
Ground Clearance 5.3 in. (135 mm)
Wheelbase 66.3 in. (1,684 mm)
Fuel Capacity 4.5 gal. (17 l)
Oil Capacity 5 qt. (4.75 l)
Seat Height 25.7 in. (653 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh
Primary Drive Gear drive with torque compensator
Final Drive Carbon fiber reinforced belt
Suspension Front: Conventional telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3 in. (75 mm) travel

BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper
Rear: 300 mm floating rotor with 2-piston caliper
Tires Front: 90/90 21 Dunlop Elite 3
Rear: 250/40R18 Dunlop Elite 3
Rake 32.9°
Trail 4.9 in. (125 mm)

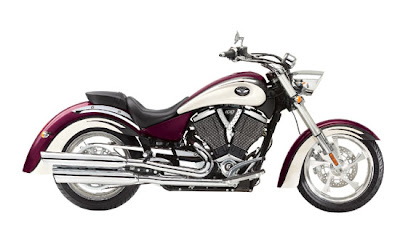

Victory Kingpin, 2009

Victory Kingpin, 2009


USA Specifications
MSRP $16,399.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters
Displacement 100 ci (1,634 cc)
Bore x Stroke 101 x 102 mm
Compression Ratio 8.7:1
Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies
Clutch Wet, multi-plate
Cooling Air / oil
Exhaust Staggered slash-cut dual exhaust with crossover

DIMENSIONS
Length 99.5 in. (2,537 mm)
Weight Dry: 663 lbs. (301 kg)
GVWR: 1,234 lbs. (560 kg)
Ground Clearance 5.8 in. (148 mm)
Wheelbase 65.6 in. (1,666 mm)
Fuel Capacity 4.5 gal. (17 l)
Oil Capacity 5 qt. (4.75 l)
Seat Height 26.5 in. (673 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh
Primary Drive Gear drive with torque compensator
Final Drive Carbon fiber reinforced belt
Suspension Front: Inverted cartridge telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3.9 in. (100 mm) travel

BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper
Rear: 300 mm floating rotor with 2-piston caliper
Tires Front: 130/70 B18 Dunlop 491 Elite II
Rear: 180 55-B18 Dunlop D417
Rake 32.8°
Trail 5.4 in. (138 mm)

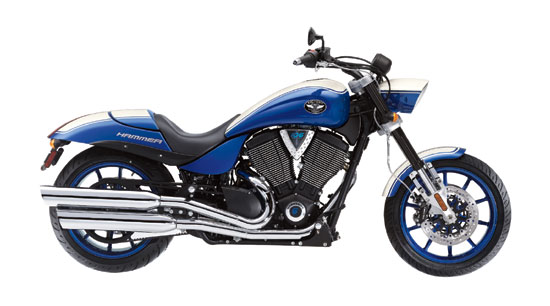

Victory Hammer S, 2009

Victory Hammer S, 2009



USA Specifications
MSRP $18,499.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters
Gross Horsepower 97 hp
Displacement 106 ci (1,731 cc)
Bore x Stroke 101 x 108 mm
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies
Clutch Wet, multi-plate
Cooling Air / oil
Exhaust Staggered slash-cut dual exhaust with crossover

DIMENSIONS
Length 93.1 in. (2,366 mm)
Weight Dry: 669 lbs. (303 kg)
GVWR: 1,173 lbs. (532 kg)
Ground Clearance 5.8 in. (148 mm)
Wheelbase 65.7 in. (1,669 mm)
Fuel Capacity 4.5 gal. (17 l)
Oil Capacity 5 qt. (4.75 l)
Seat Height 26.5 in. (673 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh
Primary Drive Gear drive with torque compensator
Final Drive Carbon fiber reinforced belt
Suspension Front: Inverted cartridge telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3.9 in. (100 mm) travel

BRAKES/WHEELS/TIRES
Brakes Front: Dual 300 mm floating rotor with 4-piston calipers
Rear: 300 mm floating rotor with 2-piston caliper
Tires Front: 130/70R18 Dunlop Elite 3
Rear: 250/40R18 Dunlop Elite 3
Rake 32.7°
Trail 5.5 in. (140 mm)

Victory Hammer, 2009

Victory Hammer, 2009




USA Specifications
MSRP $17,499.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters
Gross Horsepower 97 hp
Displacement 106 ci (1,731 cc)
Bore x Stroke 101 x 108 mm
Compression Ratio 9.4:1
Electronic Fuel Injection with dual 45 mm throttle bodies
Clutch Wet, multi-plate
Cooling Air / oil
Exhaust Staggered slash-cut dual exhaust with crossover

DIMENSIONS
Length 93.1 in. (2,366 mm)
Weight Dry: 669 lbs. (303 kg)
GVWR: 1,173 lbs. (532 kg)
Ground Clearance 5.8 in. (148 mm)
Wheelbase 65.7 in. (1,669 mm)
Fuel Capacity 4.5 gal. (17 l)
Oil Capacity 5 qt. (4.75 l)
Seat Height 26.5 in. (673 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh
Primary Drive Gear drive with torque compensator
Final Drive Carbon fiber reinforced belt
Suspension Front: Inverted cartridge telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3.9 in. (100 mm) travel

BRAKES/WHEELS/TIRES
Brakes Front: Dual 300 mm floating rotor with 4-piston calipers
Rear: 300 mm floating rotor with 2-piston caliper
Tires Front: 130/70R18 Dunlop Elite 3
Rear: 250/40R18 Dunlop Elite 3
Rake 32.7°
Trail 5.5 in. (140 mm)

Victory Cory Ness Jackpot, 2009

Victory Cory Ness Jackpot, 2009



USA Specifications
$24,499.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters

Displacement 106 ci (1,731 cc)
Bore x Stroke 101 x 108 mm
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies
Clutch Wet, multi-plate
Cooling Air / oil
Exhaust Staggered slash-cut dual exhaust with crossover

DIMENSIONS
Length 95.9 in. (2,435 mm)
Weight Dry: 649 lbs. (294 kg)
GVWR: 1,171 lbs. (531 kg)
Ground Clearance 5.3 in. (135 mm)
Wheelbase 66.3 in. (1,684 mm)
Fuel Capacity 4.5 gal. (17 l)
Oil Capacity 5 qt. (4.75 l)
Seat Height 25.7 in. (653 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh
Primary Drive Gear drive with torque compensator
Final Drive Carbon fiber reinforced belt
Suspension Front: Conventional telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3 in. (75 mm) travel

BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper
Rear: 300 mm floating rotor with 2-piston caliper
Tires Front: 90/90 21 Dunlop Elite 3
Rear: 250/40R18 Dunlop Elite 3
Rake 32.9°
Trail 4.9 in. (125 mm)

Victory Core, 2009

Victory Core, 2009




The Fresh Concept. Inspried. Beyond custom. Future performance. The bare essentials. Stripped to the core.

The CORE is a concept motorcycle designed and built by the Victory Motorcyles Industrial Design team to show what a performance cruiser of the future could look like. It consists of only the essentials: engine, frame, wheels and front suspension - no rear suspension. Its unique cast aluminum frame was made by pouring molten aluminum over a sand core, which was removed whent he casting was complete.

The FEATURES:
• 106/6 Victory Freedom V-Twin
• Aluminum alloy - AL 356-T6 - Tempered 5-piece frame
• Victory X-Factor Wheels
• 304 Stainless Steel left-side Scrambler High pipes
• Carbon fiber rear fender and fork covers

The SPECIFICATIONS:
Victory Freedom 106/6: 106 cu (1731cc) V-Twin with 6-speed overdrive
Aluminum alloy 356-T6 tempered 5-piece frame
304 Stainless Steel left-side Scrambler High pipes
Carbon fiber rear fender and fork covers
Victory X-Factor Wheels
Tires: Avon 130/70-18 front; Avon 150/70-18 rear
Front Brakes: 320mm dual 4-piston discs
Rear Brake: 240mm single disc
Suspension: WP 48mm-diameter inverted forks with 135/160mm travel
African Mahogany seat with integrated LED tail/turn/brake lights
Dry weight: 469lb/212.7 kg
Seat height: 28"/71.1cm
Wheelbase: 64"/162.56 cm
3.25 gal./12.3L fuel tank
