Polaris Sportsman 800 EFI Touring, 2009

Slogging through the fog and slop on Duck Opener. Conquering an endless sea of boulders. Or just coming around the trail’s bend and discovering a place you never knew existed.
The places we ride. The experiences we take away. They’re what shape everything we do at Polaris.

The Engine

Engine Type: 4-stroke
Displacement, cc: 760 twin
Carburetion: 40mm Throttle Body, EFI
Cooling: Liquid
Starting: Electric

Drive Train

Final Drive: Shaft
Transmission: P/R/N/L/H
Drive System: Automatic PVT, Turf / 2WD/AWD/AWD with ADC
Engine-Braking System: Standard
Active Descent Control: Standard

Suspension

Front Suspension: MacPherson Strut with 8.2" / 20.8 cm travel
Rear Suspension: Fully Independent, progressive rate with anti-roll bar; 8.75" / 22.2 cm travel

Brakes

Front Brakes: Single-Lever Hydraulic disc
Rear Brake: Hydraulic rear foot brake

Tires and Wheels

Front Tires: 25 x 8-12; 489
Rear Tires: 25 x 11-12; 489
Wheels: Cast Aluminum

Dimensions and Capacities

Wheelbase: 57" / 144.8 cm
Dry Weight: 795 lb. / 360.6 kg
Length/Width/Height: 86" / 218.4 cm, 48" / 121.9 cm, 48" / 121.9 cm
Seat Height: 34" / 86.4 cm
Fuel Capacity: 6 gal / 22.7 ltr
Front Rack/Box Capacity: 90 lb. / 40.8 kg
Rear Rack Capacity: 180 lb. / 81.6 kg
Hitch Towing Capacity: 1,500 lb. / 680.4 kg
Ground Clearance: 11" / 27.9 cm
Hitch/Type: Std / Receiver

Features
Instrumentation: Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi Temp/Low Batt Lights, DC Outlet.

Suzuki Biplane, 2008

Ural Gear Up, 2009

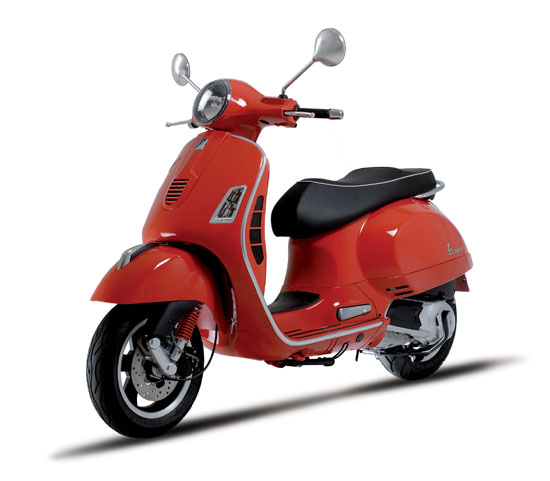

Vespa GTS 125 Super, 2009

Specifications

Engine

Type Single-cylinder Piaggio, 4 stroke, 4 valve, electronic injection, catalysed
Displacement 124 cc
Bore / Stroke 57/48.6 mm
Fuel Unleaded petrol, RON min. 95
Distribution Single overhead cam, 4 valves
Port injected Alfa/N type with lambda closed loop control and three-way catalytic converter
Ignition Electronic inductive discharge
Cooling Liquid
Lubrication Wet sump and chain driven lobe pump; intake and delivery filters
Start Electric with oil-bath free wheel
Gears Twist and go CVT transmission with torque assistance
Clutch Automatic centrifugal dry clutch with dampers

Chassis

Frame Sheet metal with welded reinforcements
Front suspension Single arm, dual chamber hydraulic shock absorber with coaxial spring
Rear suspension with coil springs adjustable preload (4 positions) and two double acting shock absorbers
Front brake Ø 220 mm disc
Rear brake Ø 220 mm disc
Front tyre Tubeless 120/70-12"
Rear tyre Tubeless 130/70-12"

Dimensions

Length 1,940 mm
Width 755 mm
Wheelbase 1,395 mm
Seat height 790 mm
Fuel tank capacity 9.5 litres
Emissions Euro 3

Victory Arlen Ness Victory Vision, 2009

Victory Arlen Ness Victory Vision, 2009
USA Specifications, $24,999.00

Engine

Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters
Displacement 106 ci (1,731 cc)
Bore x Stroke 101 x 108 mm
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies
Clutch Wet, multi-plate
Cooling Air / oil
Exhaust Split dual exhaust with crossover

Dimensions

Length 103.5 in. (2,629 mm)
Weight Dry: 804 lbs. (365 kg)
GVWR: 1,414 lbs. (641 kg)
Ground Clearance 5.8 in. (148 mm)
Wheelbase 65.7 in. (1,670 mm)
Fuel Capacity 6 gal. (22.7 l) with 1 gal. (3.8 l) reserve
Oil Capacity 5 qt. (4.75 l)
Seat Height 26.5 in. (673 mm)

Drivetrain

Transmission 6-speed overdrive constant mesh
Primary Drive Gear drive with torque compensator
Final Drive Carbon fiber reinforced belt
Suspension Front: Conventional telescopic fork, 46 mm fork tube; 5.1 in. (130 mm) travel

Rear:

Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, air adjustable; 4.7 in. (120 mm) travel
Brakes/Wheels/Tires

Brakes Front: Dual 300 mm floating rotor with 3-piston calipers
Rear: 300 mm floating rotor with 2-piston caliper
Tires Front: 130/70R18 Dunlop Elite 3
Rear: 180/60R16 Dunlop Elite 3
Rake 29°
Trail 5.4 in. (137 mm)

Yamaha BW'S Concept, 2007

The BW'S Concept:

Length/Width/Height=1,910/715/1,110mm
Engine type=Air-cooled 4-stroke SOHC
Cylinder arrangement= Single
Fuel supply system=Electronic fuel injection

The stylish variation on the BW's scooter features large-diameter block-pattern tires and special high-spec parts in the front and rear suspensions and brakes plus a wild and tough design that projects an off-road image. The result is a fun-filled commuter bike that brings excitement into everyday riding.
