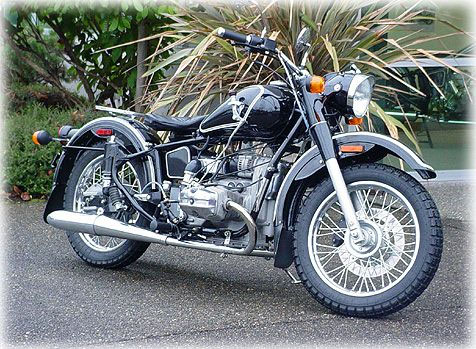

Ural Retro Solo, 2009
SPECIFICATIONS
Engine
Type Air cooled 2-cylinder 4-stroke Boxer engine
Bore/stroke 78 mm x 78 mm
Capacity 745 cc
Rated output 29 kW at 5,600 rpm
Max. torque 52 Nm at 4,000 rpm
Carburator Twin KEIHIN L22A A
Max. speed Approx.130 km/h
Ignition Electronic
Power transmission
Clutch Dry double disc
Gearbox 4 speed plus 1 reverse
Final drive Bevel gear with drive shaft
Starting Electric plus kickstart
Chassis/Brakes
Frame Double loop steel tube
Front suspension Telescopic fork
Rear suspension Double sided swinging arm with hydraulic spring shock absorbers - 2 x adjustable
Wheels 2 cross-spoked
Rims 2.15 x 18
Tyres Road tyres 3,50 x 18
Brakes front: discbrake
rear: mechanically actuated drumbrakes
Dimensions/Weights
Dry weight 246 kg
Permitted total weight 399 kg
Length/width/height 2,224/840/1,060 mm
Seat height 750 mm
Usable tank volume 19 l, 95 Octan
Fuel consumption 6.5 l/100 km
